Structural Sections

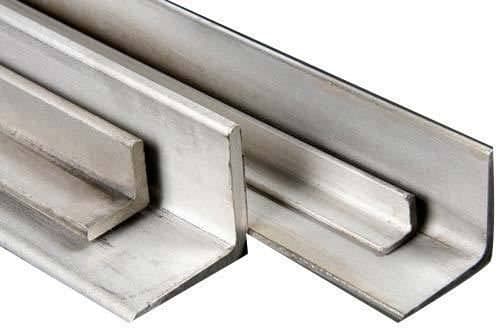

Angle Iron
Equal-leg angle from 20 × 20 mm to 150 × 150 mm.
Hot-rolled equal-leg angle produced on our own section line. Strong, straight, of uniform thickness, free from cracks and defects, and suited to welding — the qualities a fabricator actually checks for. Standard length is 6 m, with 11.7 m and 12 m available in the larger sections.
Sizes
- 20×20 mm
- 40×40 mm
- 75×75 mm
- 80×80 mm
- 100×100 mm
- 120×120 mm
- 140×140 mm
- 150×150 mm
Standards
- ISO 630-1:2021
- In-house dimensional & weld-suitability QC
01Highlights
Uniform thickness across the full length
Free from cracks and rolling defects
Suited to welding without pre-treatment
Thickness from 2 mm to 15 mm
02Specifications
- Product form
- Hot-rolled equal-leg angle
- Size range
- 20 × 20 mm – 150 × 150 mm
- Thickness
- 2 mm – 15 mm
- Standard length
- 6 m (11.7 m / 12 m in larger sections)
- Finish
- As-rolled
03Applications
- Metal frames
- Doors and windows
- Machinery frames
- Industrial structures
04Standard angle sections
| Description | Thickness (mm) | Length | Produced by |
|---|---|---|---|
| Steel Angle Iron 75 × 75 mm | 6 | 11.7 m | SMS |
| Steel Angle Iron 80 × 80 mm | 6 | 6 m | SMS |
| Steel Angle Iron 80 × 80 mm | 8 | 6 m | SMS |
| Steel Angle Iron 100 × 100 mm | 7 | 6 m | SMS |
| Steel Angle Iron 100 × 100 mm | 10 | 6 m | SMS |
| Steel Angle Iron 120 × 120 mm | 10 | 6 m | SMS |
| Steel Angle Iron 140 × 140 mm | 12 | 12 m | SMS |
| Steel Angle Iron 150 × 150 mm | 15 | 12 m | SMS |
05Gallery
