Structural Sections
Round Shafts

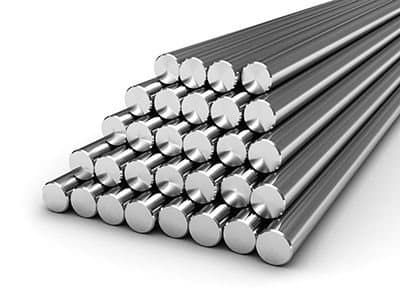

Solid round bar from 30 mm to 150 mm diameter.
Solid round shaft for machine building, axles, pins and turned components. A standard 2,000 mm shaft at 25 mm diameter weighs 4.9 kg — length, diameter and material density set the weight, and our tables give it for every size we roll.
Sizes
- 30 mm
- 40 mm
- 50 mm
- 60 mm
- 80 mm
- 100 mm
- 120 mm
- 150 mm
Standards
- In-house dimensional & weight QC
01Highlights
Solid through the section — no hollow core
Turned and finished in our own machine shop
Cut from one metre to any required length
Weight published for every diameter
02Specifications
- Product form
- Solid round shaft
- Diameter
- 30 – 150 mm
- Length
- From 1 m, cut to requirement
- Example
- 2,000 mm × 25 mm ≈ 4.9 kg
03Applications
- Machine axles and shafts
- Pins and turned parts
- Workshop and repair stock
04Weight per metre by diameter
| Diameter (mm) | Weight (kg/m) | Diameter (mm) | Weight (kg/m) |
|---|---|---|---|
| 30 | 5.55 | 80 | 39.46 |
| 35 | 7.55 | 85 | 44.55 |
| 40 | 9.87 | 90 | 49.94 |
| 45 | 12.49 | 95 | 56.64 |
| 50 | 15.41 | 100 | 61.65 |
| 55 | 18.65 | 110 | 74.60 |
| 60 | 22.20 | 120 | 88.78 |
| 65 | 26.05 | 125 | 96.33 |
| 70 | 30.21 | 130 | 104.20 |
| 75 | 34.68 | 150 | 138.72 |
05Gallery
Other products
Get in touch
Tell us the tonnage. We will tell you the lead time.
Send your bar schedule, diameters and delivery point. Quotes go out with a copy of the latest mill test certificate for the sizes you need.
