Reinforcement
Deformed Reinforcement Bar
The core of the mill. Rolled, marked and tested to ASTM A615.
Hot-rolled deformed bar from 8 mm to 32 mm, produced from our own melt and rolled with a transverse rib pattern for mechanical bond. Standard length is about 11.7 m. Every bar carries the raised SMS roll mark with its grade and diameter, and diameter, weight and mechanical properties are controlled through laboratory testing before release.
Sizes
- 8 mm
- 10 mm
- 12 mm
- 14 mm
- 16 mm
- 18 mm
- 20 mm
- 22 mm
- 25 mm
- 28 mm
- 32 mm
Standards
- ASTM A615 / A615M-16
- ASTM A370
- AASHTO M31M / M31
- ISO 630-1:2021
01Highlights
Our minimums exceed ASTM A615: 450 MPa yield, 640 MPa tensile, 15% elongation

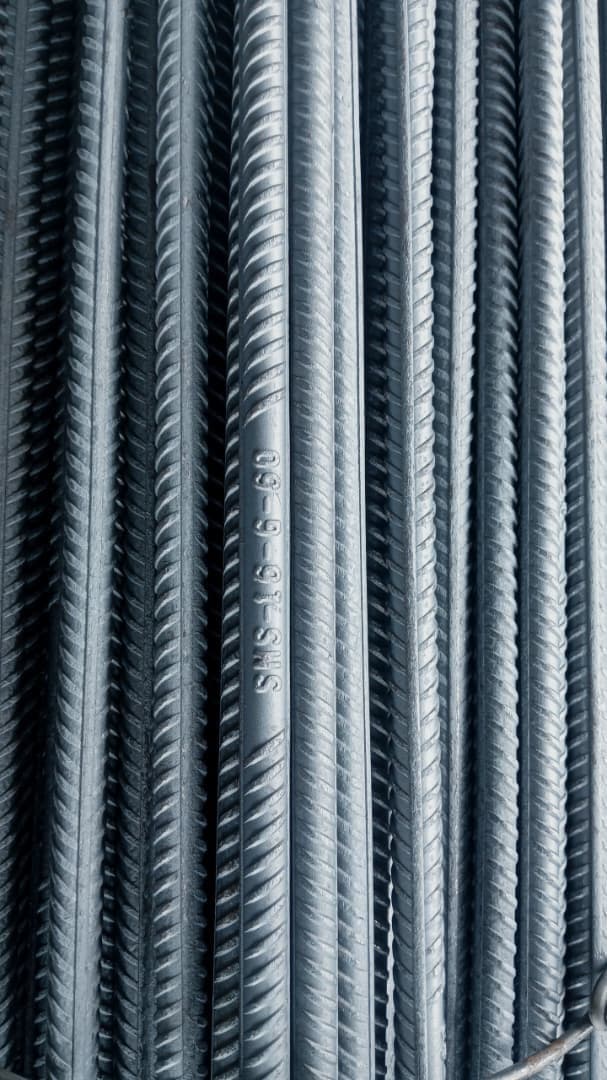

Raised SMS roll mark with grade and diameter on every bar
Tighter 180° bend than the designation requires — 3D where ASTM allows 3.5D
Standard 11.7 m lengths; cut-to-length available on order
02Specifications
- Product form
- Hot-rolled deformed bar
- Nominal diameters
- 8 – 32 mm
- Standard length
- ≈ 11.7 m (custom on request)
- Grade
- ASTM A615 Grade 60 and above
- Yield strength (min.)
- 450 MPa
- Tensile strength (min.)
- 640 MPa
- Elongation (min.)
- 15%
- Roll marking
- SMS + grade + diameter
03Applications
- Reinforced concrete frames
- Foundations and raft slabs
- Bridges and culverts
- Retaining structures
- Precast elements
04Gallery
Other products
Get in touch
Tell us the tonnage. We will tell you the lead time.
Send your bar schedule, diameters and delivery point. Quotes go out with a copy of the latest mill test certificate for the sizes you need.
